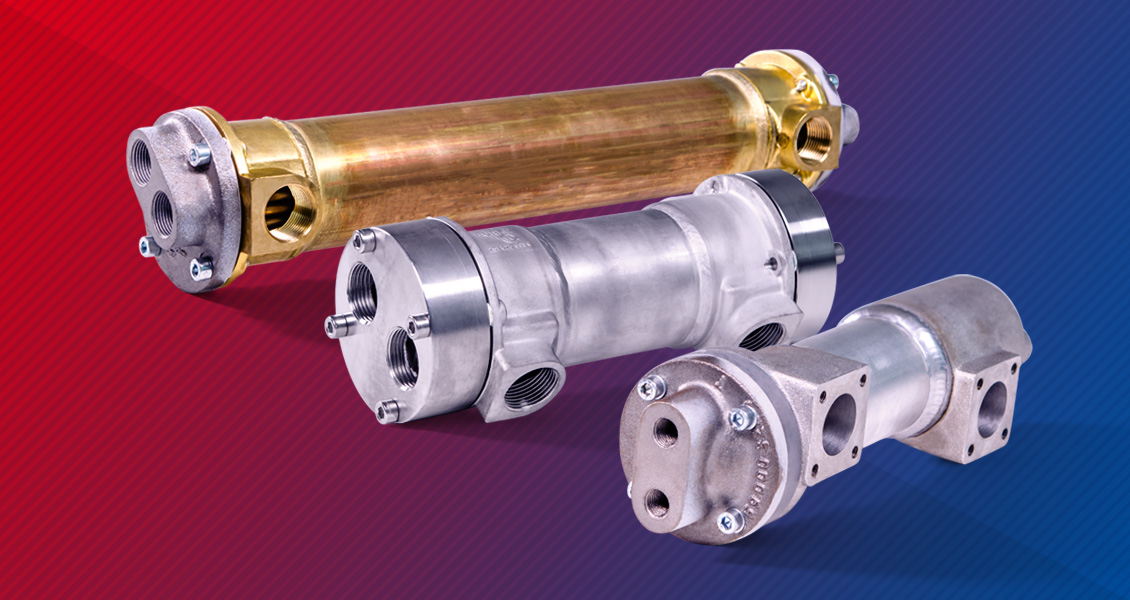

Our universal shell and heat exchanger in a modular system construction is used mainly to cool liquids such as lubricating oil and hydraulic oil or water, as well as for heating by means of saturated steam. Water, water/glycol mixtures or seawater can be used as coolants.
More than 200 graduated building sizes in different materials form the basis for an optimal and detailed type selection.
Standardization means we can ensure short delivery times.
| Component | BCF/BCP | Material standard CCF/CCP |
SSCF/SSCP |
|---|---|---|---|
| Internal tubes | CuZn28Sn1As | P235GH TC1 | 1.4571 |
| Tubesheets | CuZn38Al-C-GMCuZn38AlFeNiPbSn | 1.4408 / P265GH / GE240 | 1.4408 / 1.4571 |
| Baffles | CuZn37 | 1.4571 | 1.4571 |
| Shell | CuZn37PbO 5 | P235GH TC1 | 1.4571 |
| Connection chambers + stand | EN-GJL-200 | EN-GJL-200 | 1.4571 |
| Gaskets | Klinger C4430, Alchem 6375 | Klinger C4430, Alchem 6375 | Klinger C4430, Alchem 6375 |
| Coat of paint | RAL 5012, light blue | RAL 5012, light blue | stained and passivated |
| Component | BCF/BCP | CCF/CCP | SSCF/SSCP |
|---|---|---|---|
| Internal tubes | CuZn20Al2As CuNi30Mn1Fe 1.4571 | CuZn20Al2As CuNi30Mn1Fe 1.4571 | |
| Tubesheets | P265GH as fixed Tubesheets as well as 1.4571 as floating tubesheet for the P version | 1.4571 for the P version | |
| Shell | Flange connections shell side Connections flanged | Flange connections shell side | Flange connections shell side |
| Connection chambers + stand | Plastic coating, bronze | Plastic coating, bronze | |
| Connection chambers + stand | EN-GJL-200 | EN-GJL-200 | 1.4571 |
| Gaskets | PTFE, Viton | PTFE, Viton | PTFE, Viton |
| Coat of paint | Other RAL colors1 | Other RAL colors1 | |
| Insulation | Mineral wool with galvanized steel sheet | Mineral wool with galvanized steel sheet | Mineral wool with galvanized steel sheet |
